Ladder System

Corrosion resistance fiberglass ladder are found throughout the world in a variety applications and industries where safety, low maintenance costs, easy installation and long service life are essential.

A variety of color choice:

The standard color is safety yellow, but any systems can be custom ordered to your specific color requirements.

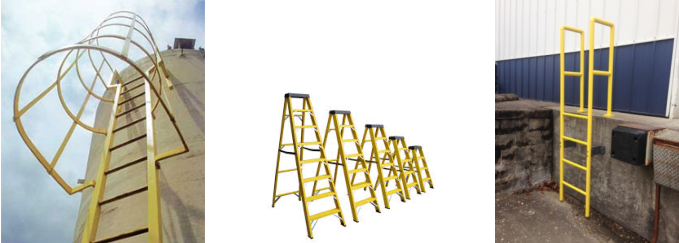

Safety Ladder System

OSHA (Occupational Safety Hazards Association) requirements for ladder and ladder systems

1. 90kgs concentrated load (minimum at center of rung)

2. Distance between ladder rungs maximum 300mm, minimum clear width between side rails of

400mm

3. Distance from centerline of rungs to wall in back of ladder shall be not less than 180mm

4. Cage required on ladders of more than 6m to a maximum unbroken length of 9m

5. Cage to extend minimum of 1000mm above of top of landing

6. Cage shall begin minimum 2100mm to maximum 2400mm above base of ladder (floor)

7. Cage shall not be less than 690mm in width

8. Cage hoop vertical bars shall be located at a maximum spacing of 40 degree around

circumference of the cage

Features of Safety ladder system:

Ready to Assemble

Light Weight

Unique Design Made to Order

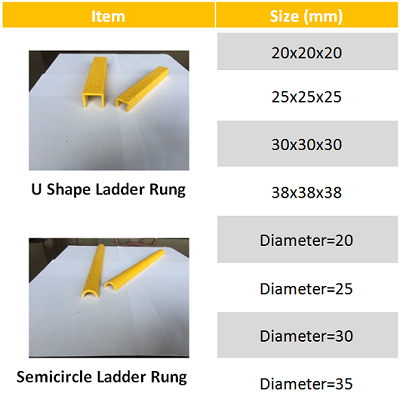

Ladder Rung System

FRP ladder rung system can make a non-skid ladder rung surface for the ladder no matter the material of ladder is FRP or traditional kinds, like steel or aluminum. We provide two kinds of ladder rungs: U shape ladder rung and semicircle ladder rung. The standard surface type is gritted surface (Quartz or Ceramic grit).
